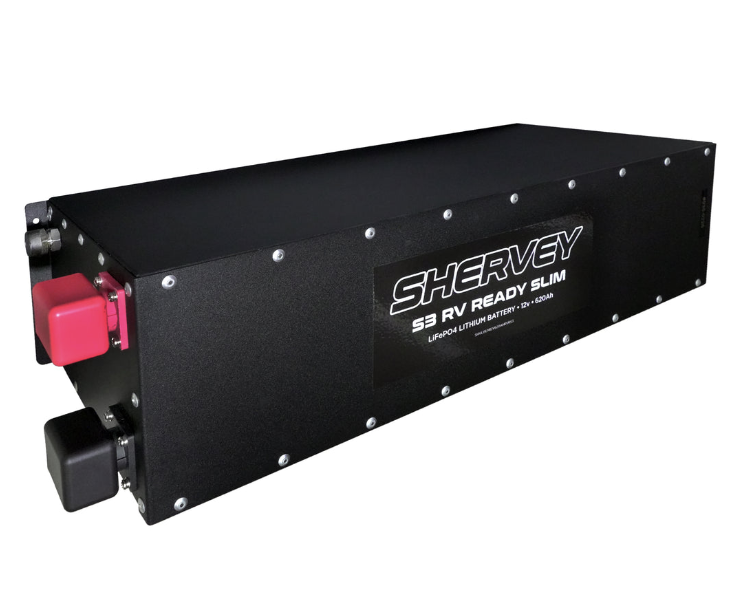

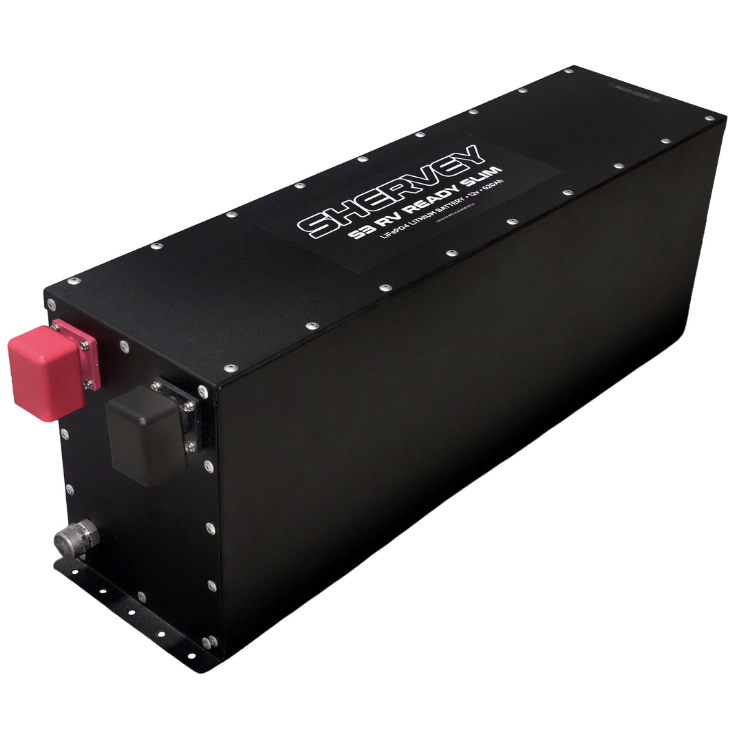

Shervey S3 RVReady Slim LiFePO4 Battery 12V 620AH

LiFePO4 12.8v Suitable for "12v" systems

• BMS continuous discharge: 300A
• BMS continuous charge: 300A
• BMS over current protection: 320A for 10 seconds, reset 35 seconds.
• Low voltage discharge shut down: 10v restart 10.5v
• High Voltage charge disconnect: 15v restart 14.8v
• Low temp charge disconnect: 1c reset 2c
• Low temp discharge disconnect -20c reset -15c
• High temp charge disconnect: 55c reset 50c
• High temp discharge disconnect: 60c reset 55c

Charging

• Bulk Charge: 14.2V – 14.6V (ideal: 14.4V)
• Absorption: 14.2V – 14.6V (ideal: 14.4V)
• Float: 13.4V – 13.6V (ideal: 13.5V)


The Automotive grade cells used are rated 8000 cycles @ 70% depth of discharge.

Terminal size: M10

Vent outlet thread: 1/2 inch male BSP thread

Sealed back riveted case made from zinc plated and powder coated steel with high temp sealant

Weight 54.5kgs
